Fiber Bundles

  • Coherent, mapped, or random bundles
  • Multi-channels combined in one connector
  • Ultra-low loss, extremely high uniformity
  • Multimode, singlemode, or plastic optical fiber
  • Large number of fibers per customer requirements
  • Extremely flat end-polished with no scratch or defects
  • Edge plane perpendicularity ± 0.05º

Product Description:

Silicon Lightwave manufactures standard and custom fiber bundles with excellent transmission uniformity and ultra-low loss flat endface polish. Various number of fibers and cabling types are available in stock for quick leadtime special fiber bundles order.  We also provide custom request fiber spacing coherent/mapped arrays with anti-reflection coatings.

Special Configurations and Applications
  • Coherent, mapped, or random bundles
  • Ring, round, half-round, rectangular, or line shape
  • Connectors: FC, SMA, ST, or others
  • Specialized fiber bundle for laser combiner
  • Fiber bundles for PMT measurements, imaging, hollography, laser/detector array coupling, testing multiple fiber channels with only a single power meter

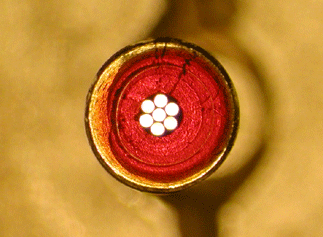

Coherent Bundle of Visible and IR Fibers

Specifications
Drawings
Test Data
Characteristics Value
Number of Fibers Upto 42 fibers in an FC, 96 fibers in a SMA, and 512 fibers in custom order
Fiber Type Singlemode, Multimode, PM, PCF, Hollow-Core, Mid-IR
Bundle Outer Diameter 2.5mm, 3.17mm or Custom
Bundle Active Area Geometry Round, Line, Square, Rectangle, Triangle, Ring, Half Round, Segmented
Fiber Core Position Tolerance < 0.5 µm
Surface Finish < 10-15 Angstroms, 10/5 Scratch/Dig
Edge Plane Perpendicularity ± 0.1º
Flatness 1/10 wave
Angle Polishing Accurate to any specified angle
Fan-out Connector Type FC/PC, FC/APC, SMA, SC, LC, ST, MU


Ordering Information:

Fiber Type:
Wavelength [nm]
Number of Fibers:   Bundle Connector Type:
Fiber Length   Fan-Out Connector Type:

Additional Requirements:
