Fiber Collimator
High Temperature / High Power
Fiber Collimators

  • Clean Gaussian beam, no ring, no distortion < 1/10-wave
  • Perfect collimation with negligible beam divergence
  • Radiation resistant component materials and fibers
  • Operating wavelength 180 - 4000 nm
  • Operating temperature upto 600°C
  • Adjustable focus/collimation
  • High power handling upto 15 Watts
  • FC or SMA receptacle or pigtail
Product Description:

Applications:
  • Interferometry, Lidar, Free-Space Communication
  • Spectroscopy, Sensors, Biomedical
  • Particles Accelerator and Nuclear

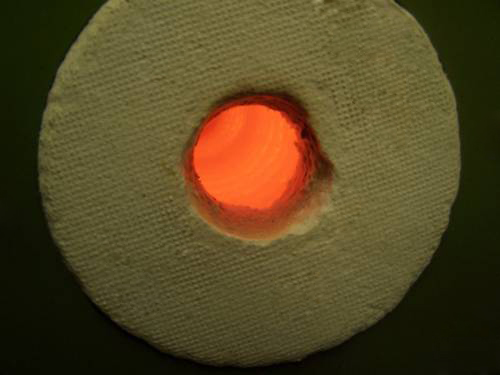

High Temperature Test Oven
Tested at over 600°C
High Temperature Collimator Beam Profile
Clean Gaussian Beam
High Temperature Collimator with Feedthrough
600ºC High Temperature Fiber
Collimator w/ Fiber Feedthrough
for Vacumm or High Pressure
Environment

Specifications
Drawings/Technical Info
Test Data
Characteristics Unit HTC1 HTC2 HTC5 HTC10
Beam Size (1/e^2,NA=0.13) mm 0.5 1.3 3.8 7.1
Beam Divergence mrad -- 0.5 0.5 0.25
Wavefront Error wave -- 1/10 1/10 1/10
Pointing Error mrad 0.1 0.1 0.1 0.1
Input Receptacle   FC or Pigtail
Collimation Adjustable   Yes
Power Handling   Up to 15 Watts
Operating Temperature   -265ºC to +260ºC
Housing   Titanium, Glass, Ceramics
Fiber Jacket   Teflon, Hytrel, Non-Outgas Armored


Ordering Information:

Fiber Type:
  Core Size:      Numerical Aperture (NA):
Wavelength [nm]:
Beam Size [mm]:
Highest Temp [ºC]:
Connector Type:
Fiber Length [m]:

Additional Requirements:
