Single/Multi-Wavelengths
Very High Power

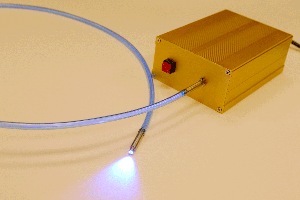

Turn-Key LED Sources

  • Very high power up to 1500mW condensed to an area of either 3mm or 5mm
  • Available wavelengths in Visible, Near Infrared and Infrared. See available wavelengths table below
  • Can be focused or collimated at working distance
  • Uniform illumination and very stable output
  • Low coherence fiber-coupled sources
  • Optical filters, diffuser, TTL modulation, delivery fiber optional
  • Long life, low power consumption, cool operation and replacement for traditional xenon arc lamps

LED Source Brochure LED Brochure


Product Description:

  • Spectroscopy, OCT, Flow Cytometry
  • Photodynamic Therapy
  • Phase or Confocal Microscopy
  • Biomedical Sensors and Intrumentations

Specifications
Drawings
Test Data
Characteristics Cool
White
Warm
White
Red Green Blue UV
Wavelength (nm) 400-700 400-700 630±10 525±10 470±10 400±10
DC Voltage 12 V 12 V 12 V 12 V 12 V 12 V
Optical Output Power 550/1500 mW 350 mW 235 mW 125 mW 200 mW 285 mW
LED Junction Temperature 150°C 150°C 150°C 150°C 150°C 125°C
Operating Temperature -20°C to +80°C
Switching Time 0.5 msec
Lifetime 100,000 hours


Ordering Information:

Part # Description Color Fiber Core
(mm)
WL
(nm)
Output
Power (mW)
In Stock Quote
Qty.
LR-3 285mW Fiber-Coupled Ultraviolet LEDs UV 3 405 285 Call
LR-4 200mW Fiber-Coupled Blue LEDs B 3 465 200 Call
LR-5 125mW Fiber-Coupled Green LEDs1 G 3 525 125 Call
LR-6 235mW Fiber-Coupled Red LEDs R 3 630 235 Call
LR-7 200mW Fiber-Coupled Deep Red LEDs DR 3 660 200 Call
LR-W 350mW Fiber-Coupled Warm White LEDs (3200K) WW 3 350 Call
LR-C 550mW Fiber-Coupled Cool White LEDs (5500K) CW 3   550 Call
LR-C5 1500mW Fiber-Coupled Cool White LEDs (5500K) CW 5   1500 Call

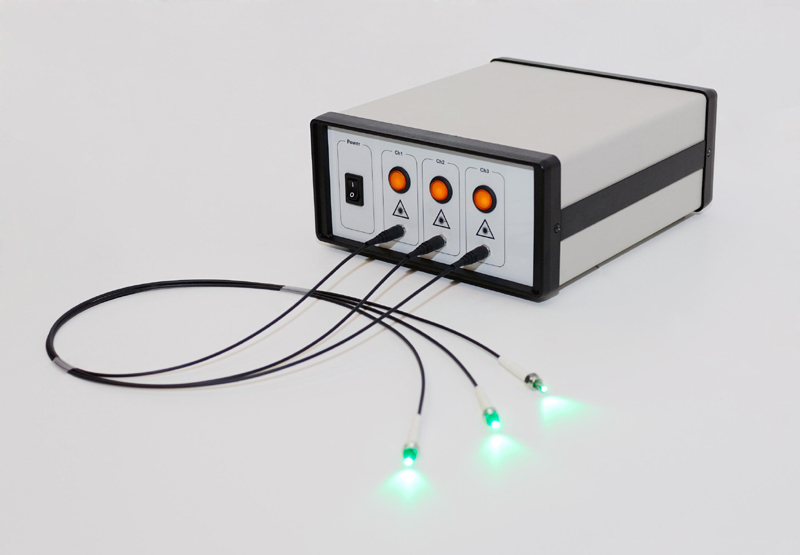

LR-MW Multi-wavelengths Fiber-Coupled LED source
(Red, Green, Blue, White, 850nm, 940nm and 1310nm)
MW 3   200 Call



Available Wavelengths
355 nm 720 nm 1020 nm
365 nm 750 nm 1060 nm
405 nm 810 nm 1200 nm
465 nm 830 nm 1300 nm
505 nm 850 nm 1450 nm
525 nm 870 nm 1480 nm
590 nm 905 nm 1550 nm
630 nm 910 nm 1600 nm
660 nm 940 nm 1720 nm
670 nm 970 nm 1800 nm

Please contact us at (949) 753-0421 or specify your custom requirements below
